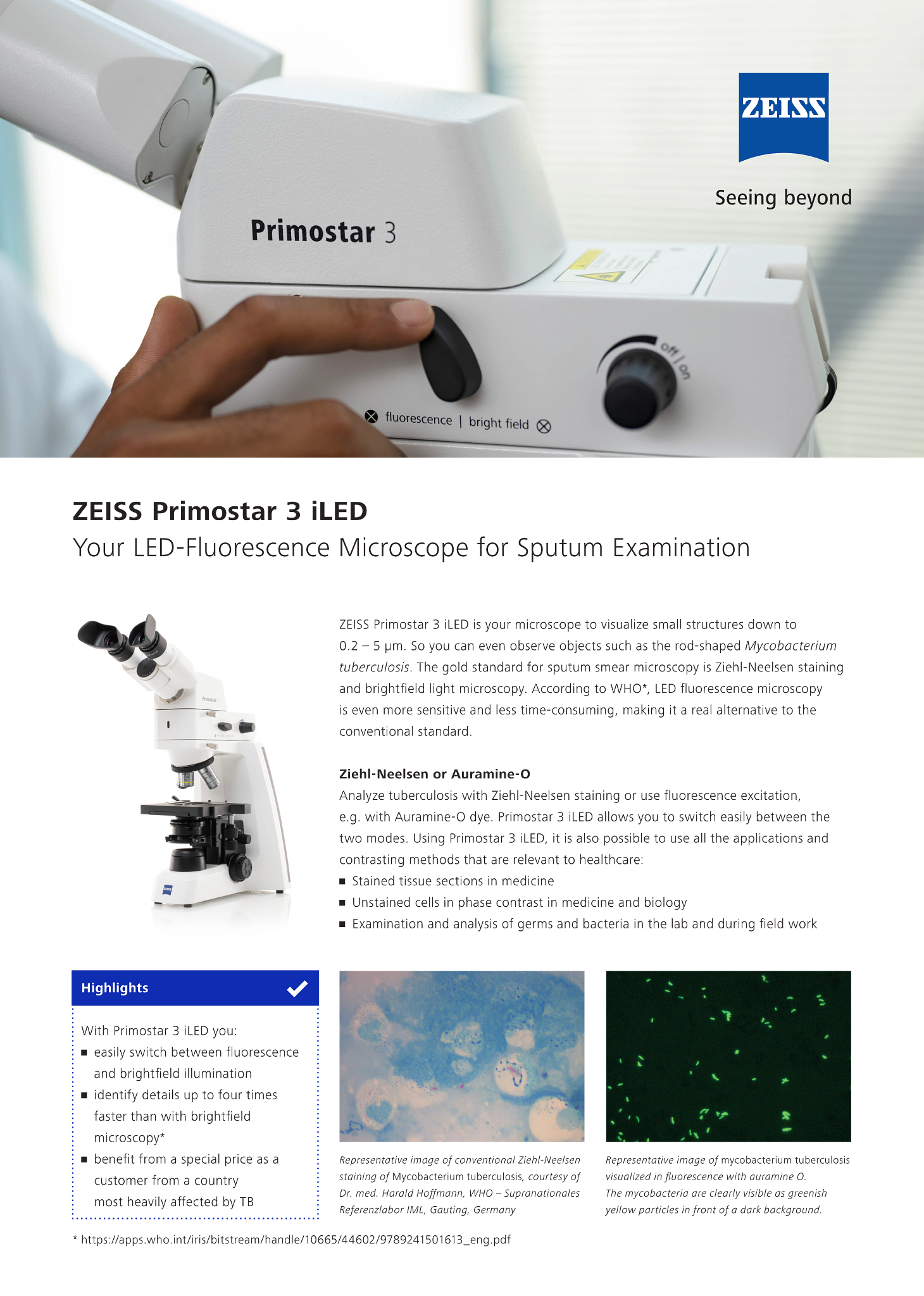

ZEISS Primostar 3 iLED

Your LED-Fluorescence Microscope for Sputum Examination

Highlights

• Easily switch between fluorescence and brightfield illumination

• Identify details up to 4× faster than with brightfield microscopy*

• Special pricing for customers in countries most heavily affected by TB

* WHO notes LED fluorescence microscopy is more sensitive and less time-consuming than conventional brightfield for sputum smear microscopy. (See the WHO reference in the flyer.)

Overview

ZEISS Primostar 3 iLED helps you visualize small structures down to 0.2–5 µm, including rod-shaped Mycobacterium tuberculosis. Ziehl-Neelsen (ZN) staining with brightfield is the traditional gold standard, and LED fluorescence (e.g., with Auramine-O) provides a sensitive, time-saving alternative.

Applications & contrasting methods relevant to healthcare

• Stained tissue sections in medicine

• Unstained cells in phase contrast (medicine & biology)

• Examination and analysis of germs and bacteria in the lab and in field work

Mode switching

Quickly toggle between ZN brightfield and fluorescence excitation (e.g., Auramine-O) for TB analysis.

Representative images in the flyer show:

• Mycobacterium tuberculosis with Auramine-O in fluorescence (greenish-yellow particles on a dark background)

• Conventional ZN staining image (credit: Dr. med. Harald Hoffmann, WHO – Supranational Reference Laboratory IML, Gauting, Germany)

Special Features

• All optical components are anti-fungus treated

• LED intensity indicator panels on both sides of the stand

• Powerbank support

Norms & Standards

CE, IvD 98/79/EG, CSA, ISO 9001, ISO 13485, ISO 14001

Technical Data

Dimensions & Weight

Spec Value

Dimensions (W × D × H) Approx. 190 × 410 × 449 mm (stand with reflected fluorescent illumination)

Weight Approx. 10 kg

Light Sources (Transmitted Illumination)

Item Details

LED white-light 1 W white-light LED, 5600 K (fixed), peak 440 nm

Safety LED hazard group 1 (DIN EN 62471, low risk)

Homogeneous field illumination 20 mm

Analog brightness adjustment Approx. 15–100 %

Average operation lifetime Approx. 30,000 h

Suitable objective magnifications 4× to 100×

LED Module (Reflected Fluorescent Illumination)

Max. 40 mW, 455 / 470 nm; LED hazard group 2 (DIN EN 62471)

Optical & Mechanical

Component Details

Stand with stage focus – coarse 45 mm/rev

Stand with stage focus – fine 0.2 mm/rev

Total focus travel 20 mm

Objective turret Manual four-position

Objectives Infinite focus objectives with W 0.8 screw thread

Eyepieces 30 mm diameter; PL 10×/20 Br. foc. and PL 10×/22 Br. foc.

Object stage Mechanical rackless stage, 140 × 135 mm

Stage travel 75 × 40 mm

Coaxial drive Short, right

Verniers Readable from right

Object holder Spring clip (left)

Condensers Abbe 0.9/1.25 fixed Köhler (Vobj 4×–100×) • Abbe 0.9/1.25 full Köhler (Vobj 4×–100×) • Turret condenser BF/Ph1/Ph2/Ph3/DF

Contact

Email: microscopy@zeiss.com

Web: www.zeiss.com/primostariled

Notice: Not all products are available in every country. Use for in vitro diagnostic procedures may be limited by local regulations. Contact your local ZEISS representative for details.

EN_41_012_043 | CZ 11-2023 | Design, scope of delivery and technical progress subject to change without notice. © Carl Zeiss Microscopy GmbH.
